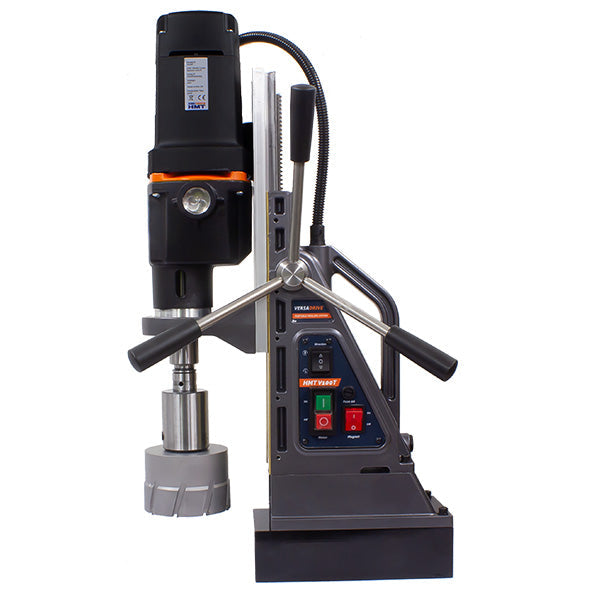

HMT V100T Versadrive Magnetic Drill Pro Kit 110 Volt
(+ 20% VAT)
The HMT V100T offers high performance, low maintenance industrial drilling with an all-day broaching capacity up to 100mm diameter.
Its powerful forward /reverse, variable speed, geared Eibenstock motor will tap holes up to M30 and can be used with the VersaDrive® blind hole tapping system up to M30.
The V100T is also fully rated for reaming and countersinking. Supplied with a coolant fed arbor.
• All-day broaching capability up to 100mm diameter
• Forward and reverse
• Variable speed motor
• Variable Torque control
CUTTER SIZE RANGE- 12-100mm
MAX CUTTER CAPACITY – 100mm TCT
TWIST DRILL CAPACITY - 32mm
MAX TAP CAPACITY – M30
LENGTH- 345mm
WIDTH- 240mm
HEIGHT- 450-730mm
STROKE- 280mm
WEIGHT- 24.5Kg
MAGNET SIZE- 220x115mm
MAGNETIC FORCE- 2200 Kg
MOTOR POWER- 1800 W
SPEED/s (RPM)- 1) 60-140 2) 200-470 RPM
SPINDLE- MT3
ARBOR- 19.05mm (3/4”) Weldon
TAKES CHUCK- Yes
COOLANT SYSTEM – Gravity Oil Fed
