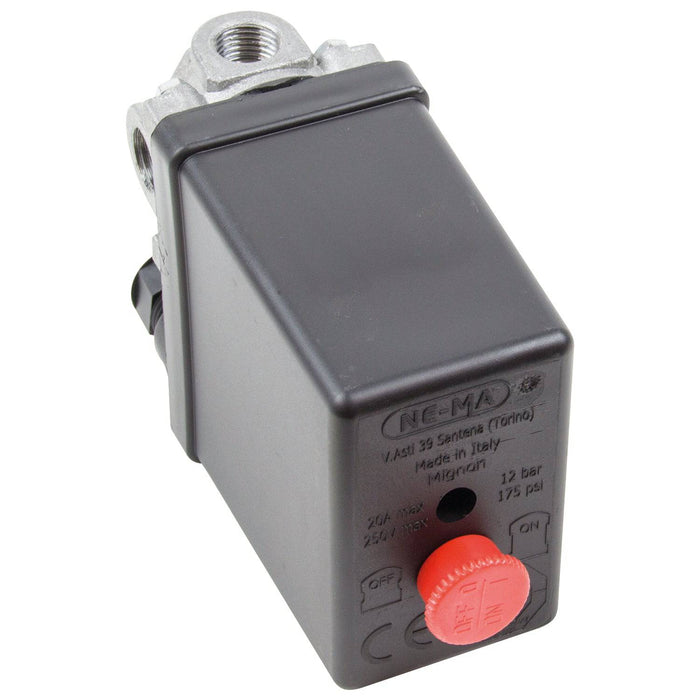

SIP 1/4" 4-Way Pressure Switch

The SIP 1/4" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This easy-to-install switch offers 3x 1/4" BSP ports and adjustable cut-off pressure.

• 1/4" 4-way pressure switch with 3x 1/4" BSP ports
• Easily adjustable cut-off pressure via built-in switch
• Designed to start and stop electric compressor motors
• Manufactured for long-lasting and reliable use
• Integrated bleed facility with 6mm pipe entry

• ITEM NO. 02313
• Switch Type: Mignon 4-Way
• Voltage / Current: 230v / 16A
• Overload: N/A
• Inlet Connection Size: 1/4" BSP
• Inlet Connection Type Bottom Entry
• Side Port Size: 3x 1/4" BSP
• Switch Type: Pull
• Phase Type: 1-phase
• No. of Poles: 2 poles

Warranty: N/A
