Wera Kraftform Kompakt VDE Safe-Torque Speed control cabinet Set 1, 23 pieces

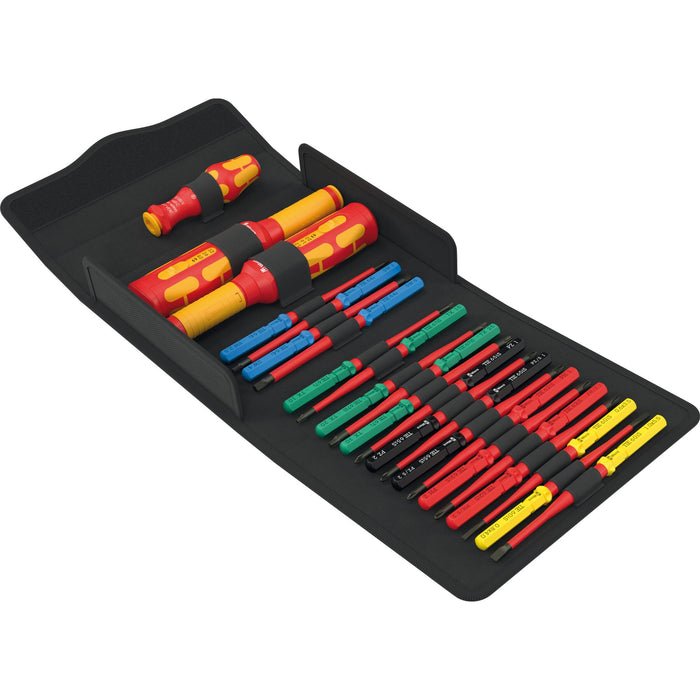

23-piece Kraftform Kompakt VDE set. One Safe-Torque Speed 7508 VDE torque wrench with five selectable maximum tightening torques (0.4; 0.8; 1.2; 1.6; 2.0 Nm), one 7516 VDE Safe-Torque Speed torque wrench with five selectable maximum tightening torques (0.4; 0.8; 1.2; 1.6; 2.0 Nm), each with a fixed position (Torque Lock) for unlimited loosening and tightening moments, digital torque value display, reliable slip-over mechanism when the set torque is reached, one 817 VDE bladeholding screwdriver. Torque wrenches and bladeholding screwdriver solely for Wera VDE blades. 20 VDE blades (each 157 mm length) with Take it easy tool finder: colour coding by profile and laser-engraved size indication, most of which with reduced blade diameter, so that even low-lying screw and spring elements can be easily reached and operated. In a robust textile box for neat storage and convenient transport.

Features

• Individually tested tools as per IEC 60900
• VDE bladeholding torque screwdriver 7508 VDE with 5 pre-set values (0.4; 0.8; 1.2; 1.6; 2.0 Nm)
• VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0 Nm)
• Speed: Extremely fast setting of desired torque values
• Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation
• Torque Lock function: for high tightening and loosening moments without torque
• 817 VDE handle for Kraftform Kompakt interchangeable blades
• VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication

Specifications

Set Contents

7508 VDE Kraftform Safe-Torque Speed Torque screwdriver, 0.4-2.0 Nm, 9 x 0.4 Nm x 0.8 Nm x 1.2 Nm x 1.6 Nm x 2.0 Nm x 192 mm

• 1× 05075870001 — 9 x 0.4 Nm x 0.8 Nm x 1.2 Nm x 1.6 Nm x 2.0 Nm x 192 mm

7516 VDE Kraftform Safe-Torque Speed Torque screwdriver, 2.4-4.0 Nm, 9 x 2.4 Nm x 2.8 Nm x 3.2 Nm x 3.6 Nm x 4.0 Nm x 192 mm

• 1× 05075876001 — 9 x 2.4 Nm x 2.8 Nm x 3.2 Nm x 3.6 Nm x 4.0 Nm x 192 mm

817 VDE Kraftform blade-holding handle, 9 x 98 mm

• 1× 05003990001 — 9 x 98 mm

Kraftform Kompakt VDE 62 iS Take it easy, PH 1 x 157 mm

• 1× 05006512001 — PH 1 x 157 mm
• 1× 05006513001 — PH 2 x 157 mm

Kraftform Kompakt VDE 65 iS Take it easy, PZ 1 x 157 mm

• 1× 05006526001 — PZ 1 x 157 mm
• 1× 05006527001 — PZ 2 x 157 mm

Kraftform Kompakt VDE 62 iS PH/S Take it easy, # 1 x 157 mm

• 1× 05006516001 — # 1 x 157 mm
• 1× 05006517001 — # 2 x 157 mm

Kraftform Kompakt VDE 65 iS PZ/S Take it easy, # 1 x 157 mm

• 1× 05006530001 — # 1 x 157 mm
• 1× 05006531001 — # 2 x 157 mm

Kraftform Kompakt VDE 67 iS TORX® Take it easy, TX 15 x 157 mm

• 1× 05006540001 — TX 15 x 157 mm
• 1× 05006541001 — TX 20 x 157 mm
• 1× 05006542001 — TX 25 x 157 mm

Kraftform Kompakt VDE 67 i TORX® Take it easy, TX 10 x 157 mm

• 1× 05006534001 — TX 10 x 157 mm
• 1× 05006539001 — TX 30 x 157 mm

Kraftform Kompakt VDE 64 i Take it easy, 2.5 x 157 mm

• 1× 05006518001 — 2.5 x 157 mm
• 1× 05006519001 — 3 x 157 mm
• 1× 05006520001 — 4 x 157 mm
• 1× 05006521001 — 5 x 157 mm

Kraftform Kompakt VDE 60 iS Take it easy, 0.6 x 3.5 x 157 mm

• 1× 05006506001 — 0.6 x 3.5 x 157 mm
• 1× 05006507001 — 0.8 x 4 x 157 mm
• 1× 05006508001 — 1 x 5.5 x 157 mm
