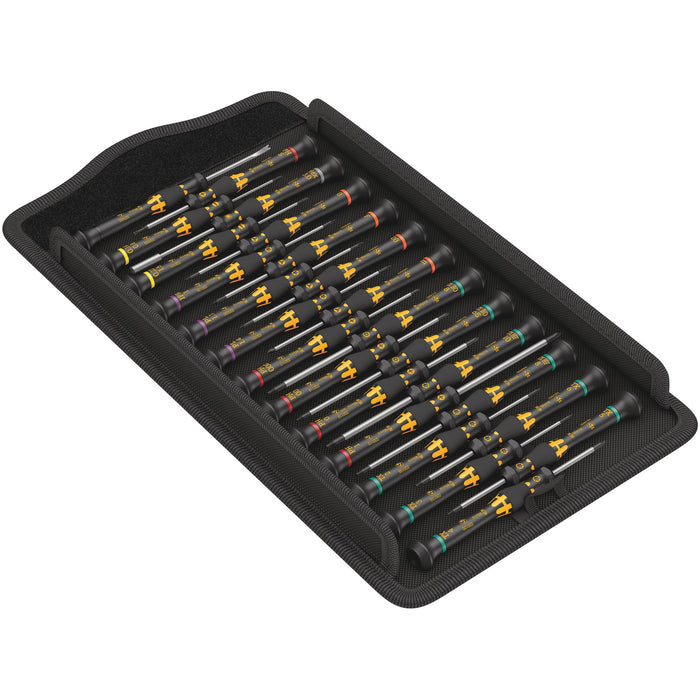

Wera Kraftform Micro ESD Big Pack 1 Screwdriver set for electronic applications, 25

Electrostatically secured Wera Micro screwdriver 25-piece set. The included screw profiles are especially suitable for the use on mobile phones and tablets. Safe protection against electrostatic energy and associated damage. By supporting the hand on the rotating cap, and by the fast rotating zone below the rotating cap, lightning fast turning is possible. Time-consuming hand switching is eliminated. The power zone with integrated soft zones ensures the transmission of high tightening and loosening moments. Precision zone for correct rotation angles whilst adjusting. The Black Point tip provides fitting accuracy and optimum corrosion protection. Take it easy tool finder with size stamping and colour coding by profile to find the required tool quickly and easily. Storage and transport in a robust textile pouch, so the tool is well protected and always close at hand.

Features

• ESD-safe tool thanks to surface resistance of ≤ 10⁹ Ohm
• The fast-turning zone just below the rotating cap allows rapid spinning.
• The Wera Black Point tip offers an exact fit and optimum corrosion protection
• Multi-component Kraftform Micro handles for fast and ergonomic screwdriving
• Included profiles especially suitable for servicing mobile phones, tablets and laptops/desktops
• Take it easy tool finder: colour coding according to profile and size

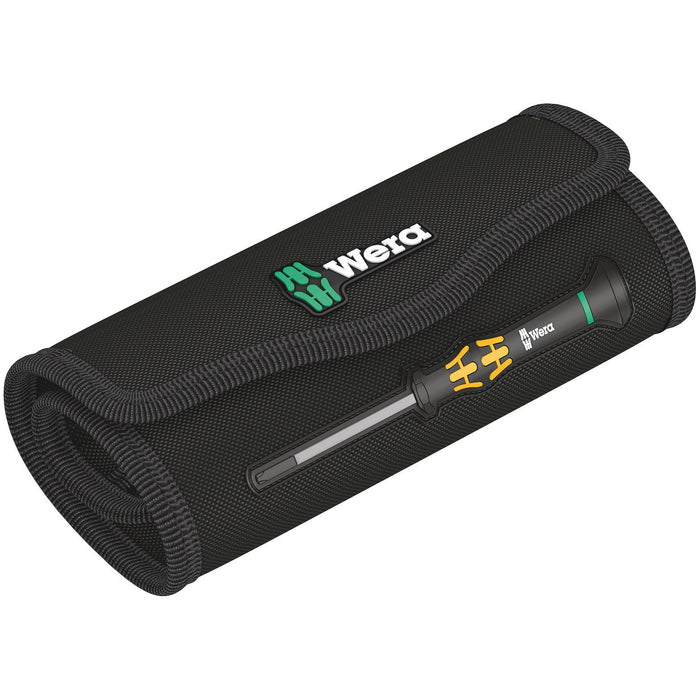

• Storage and transport in a robust textile bag, so the tool is well protected and always close at hand

Specifications

Set Contents

1),2)

• 1× 05030117001 — PH 000 x 40 mm
• 1× 05030118001 — PH 00 x 40 mm
• 1× 05030119001 — PH 0 x 40 mm
• 1× 05030112001 — PH 1 x 80 mm

1550 PH S ESD Kraftform Micro screwdrivers, # 1 x 40 mm

• 1× 05030109001 — # 1 x 40 mm

1567 TORX® HF ESD Kraftform Micro screwdriver with holding function for TORX® screws, TX 8 x 60 mm

• 1× 05030404001 — TX 8 x 60 mm
• 1× 05030406001 — TX 10 x 60 mm

1567 TORX® ESD Kraftform Micro screwdriver for TORX® screws, TX 2 x 40 mm

• 1× 05030158001 — TX 2 x 40 mm
• 1× 05030159001 — TX 3 x 40 mm
• 1× 05030120001 — TX 4 x 40 mm
• 1× 05030121001 — TX 5 x 40 mm
• 1× 05030122001 — TX 6 x 40 mm

1567 TORX® BO ESD Kraftform Micro screwdriver for tamper-proof TORX® screws, TX 6 BO x 60 mm

• 1× 05030113001 — TX 6 BO x 60 mm
• 1× 05030114001 — TX 8 BO x 60 mm

1567 IPR TORX PLUS® ESD Kraftform Micro screwdriver, 1 IPR x 40 mm

• 1× 05030135001 — 1 IPR x 40 mm

1572 ESD Kraftform Micro screwdriver for Microstix® screws, m x 40 mm

• 1× 05030080001 — m x 40 mm
• 1× 05030081001 — 00 x 40 mm
• 1× 05030082001 — F x 40 mm
• 1× 05030083001 — 0 x 40 mm

1573 Pentalobe ESD Kraftform Micro screwdriver, PL 1.1 x 40 mm

• 1× 05030330001 — PL 1.1 x 40 mm
• 1× 05030331001 — PL 1.4 x 40 mm

1569 ESD Nutdriver Kraftform Micro, 3 x 60 mm

• 1× 05030414001 — 3 x 60 mm

1578 A ESD Kraftform Micro screwdriver for slotted screws, 0.16 x 0.8 x 40 mm

• 1× 05030099001 — 0.16 x 0.8 x 40 mm
• 1× 05030101001 — 0.23 x 1.5 x 40 mm
