Wera Safe-Torque A 1 Set 1, 1/4" square head drive, 2-12 Nm, 10 pieces

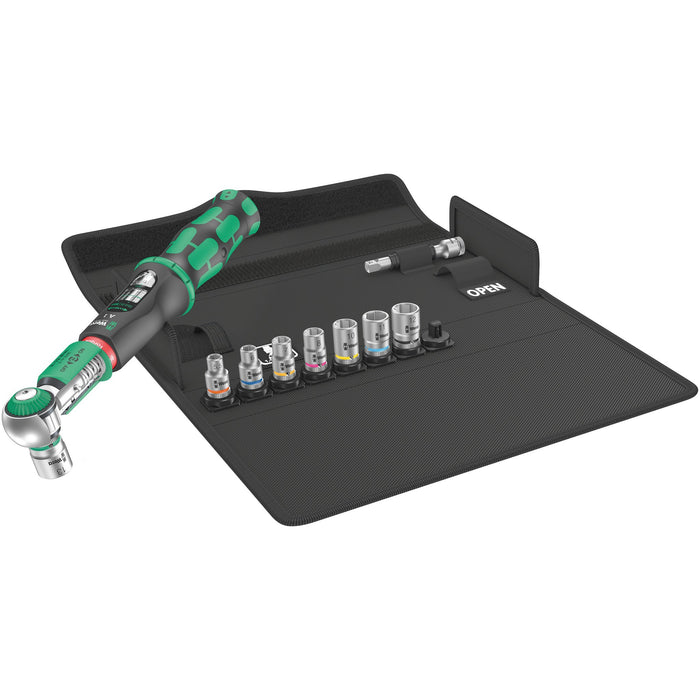

10-piece 1/4" torque wrench set in a robust textile box; torque wrench with slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied. Setting range of 2 to 12 Nm for controlled clockwise and counterclockwise torque operation. Easy setting and saving of the default value: The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The Torque Lock function allows use as a standard ratchet without torque function. Thus also usable for applications with angles of rotation. Max. breaking torque of the ¼" square head as per DIN 3122. The return angle of only 5° allows the ratchet to be used even in confined spaces. Included are: Safe-Torque A 1 torque wrench, 1/4" square head, 2-12 Nm, 8 sockets with 1/4" drive and one short extension.

Features

• Slip-over release mechanism - the set torque can never be overtightened
• Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
• For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque
• Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
• After the target torque has been reached, the release angle is only 30°
• The fine toothing with 72 teeth allows for a low return angle of 5°

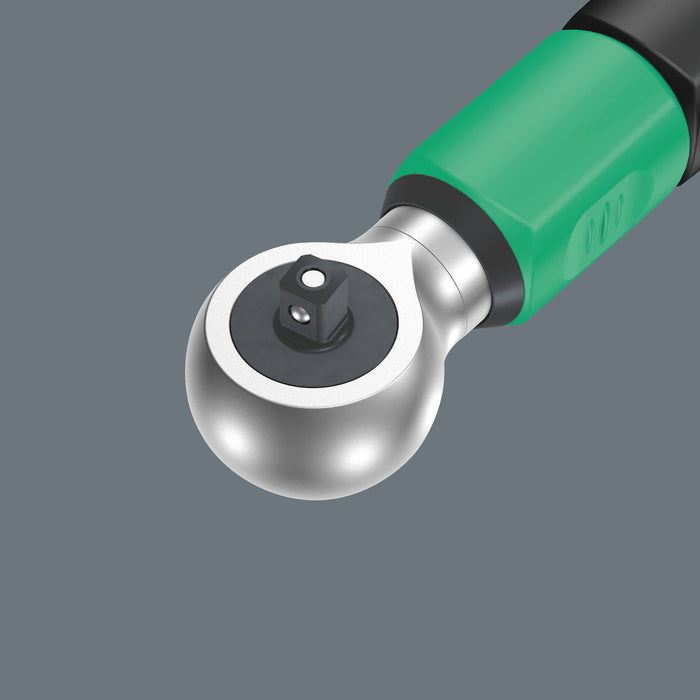

• 1/4" square head drive with socket locking

Specifications

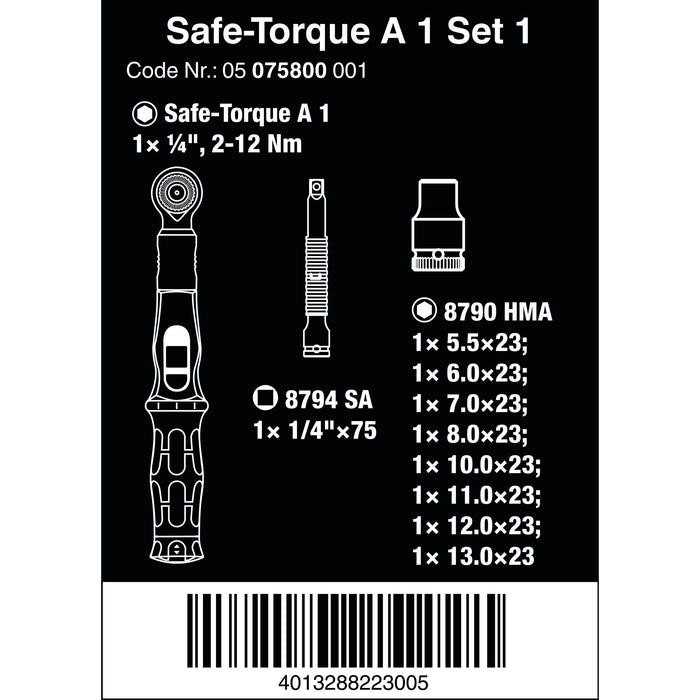

Set Contents

Safe-Torque A 1 torque wrench with 1/4" square head drive, 2-12 Nm, 1/4" x 2-12 Nm

• 1× 05075800001 — 1/4" x 2-12 Nm

8790 HMA Zyklop 1/4" socket, 5.5 x 23 mm

• 1× 05003504001 — 5.5 x 23 mm
• 1× 05003505001 — 6 x 23 mm
• 1× 05003506001 — 7 x 23 mm
• 1× 05003507001 — 8 x 23 mm
• 1× 05003509001 — 10 x 23 mm
• 1× 05003510001 — 11 x 23 mm
• 1× 05003511001 — 12 x 23 mm
• 1× 05003512001 — 13 x 23 mm

8794 SA Zyklop extension with free-turning sleeve, short, 1/4", 1/4" x 75 mm

• 1× 05003525001 — 1/4" x 75 mm
