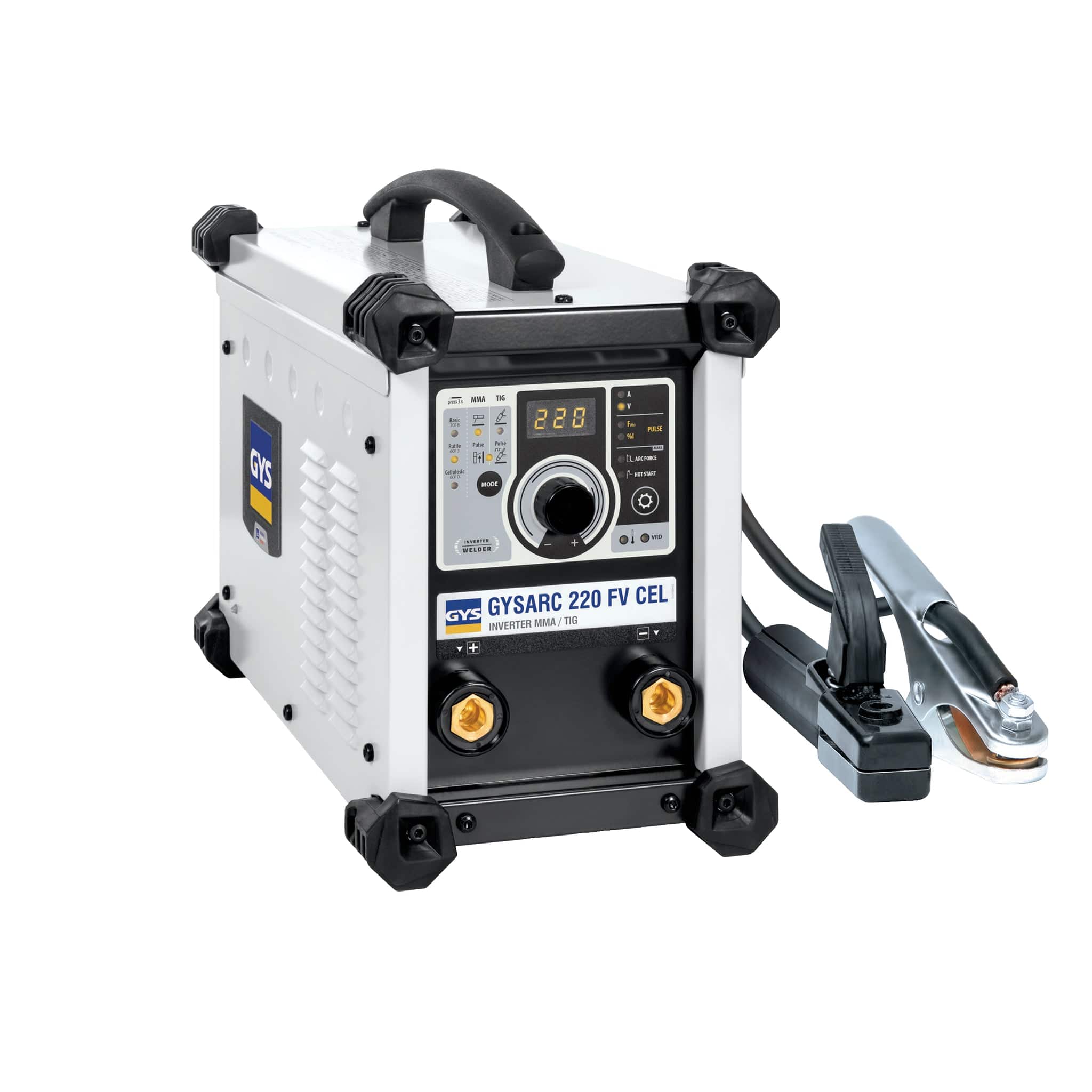

GYS ARC 220 FV CEL

220 A INVERTER COATED ELECTRODE (MMA) WELDING STATIONThe GYSARC 220 FV CEL combines the latest welding technology with an intuitive user interface. Its start-up dynamic allows it to weld very reliably, vertically going down or up, all types of electrodes up to 5 mm.MMA process• Welding current in MMA from 10 to 220 A• Duty cycle of 60% at 130 A (40°C)• MMA Pulse, ideal in vertical rising welding position• Accepts Rutile, Basic, Stainless Steel, Cast Iron electrodes and Cellulosics (up to Ø 5 mm)• Integrated welding aids: Adjustable Hot Start, Adjustable Arc Force and Antisticking• Choice of electrode type for optimal welding (predefined parameters)DC TIG process• DC TIG welding current from 5 to 220 A• Lift ignition• TIG Pulse, limits the melting temperature and allows the welding of sheets from 0.3 mm.• “PFC” technology allows the use of power cables of up to 100 m• Single-phase power supply Flexible Voltage from 85 to 265 V• Protection level IP23 for outdoor use• Protected against surges up to 400 V thanks to PROTEC 400 technology→ Delivered with electrode holder and ground clamp (3 m)
