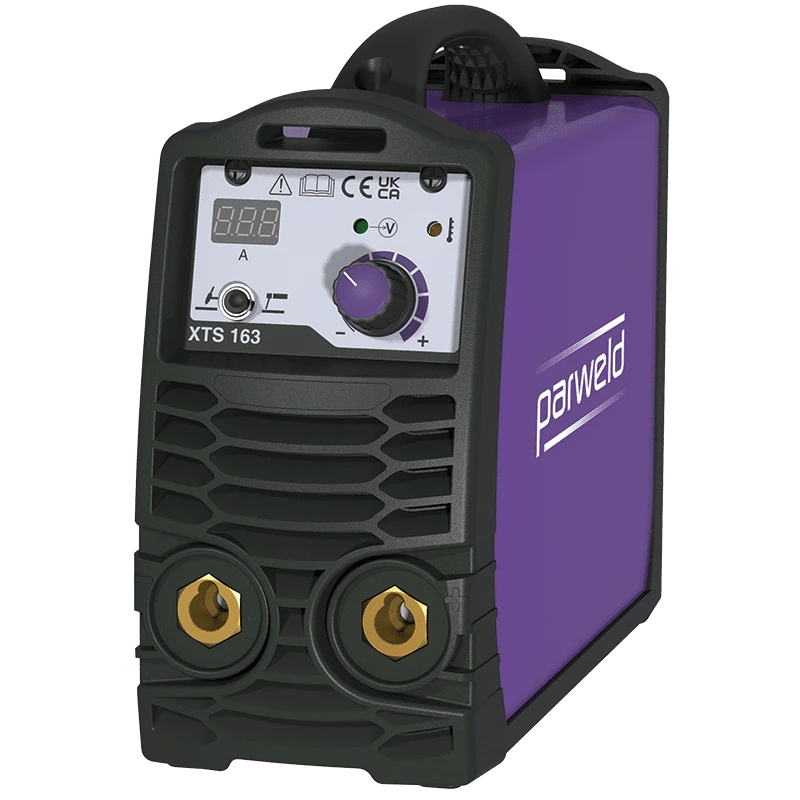

Parweld MMA Inverter XTS163 160A 230V

The XTS 163 MMA uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease. By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 163 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage. The XTS 163 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case. 230V Input 160A @ 25% Duty Cycle Lift TIG Mode Digital Display (with Digital Amperage Display) for Easy Setting Lightweight at just 4.7kg Over Voltage Protection Over Current Protection Electrode Striking with Arc Force Re-Striking with Hot Start Connections 35-50mm Twist Lock Weight N/A Dimensions N/A Phase Single Phase Machine Style Compact Machine Type Inverter Maximum Current 5-160A DC Duty Cycle 160A @ 25% Duty Cycle Input Voltage 230V 1P No Load Voltage 45V Max Electrode Size 3.2mm Input Current (Eff) 15.9A Output DC Cable Connection 35-50 Dix Minimum Fuse Rating 16A KVA 4.5 Generator Size (Requires AVC) 6 KVA Cooling Air, Fan, Forced Enclosure Protection IP23S Comes With 3m Cable, 3m Earth Lead, Electrode Holder Ideal for Applications Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Training Special Features Arc Force, Digital Amperage Display, Electrode Striking, Lift TIG Mode, Lightweight, Over Voltage + Over Current Protection, Re-Striking, Re-Striking with Hot Start Warranty 3 Year Service, 3 Year Warranty Conforms To IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
